The main body is manufactured from aluminum nitride (AlN) ceramic.
Learn more about Aluminum Nitride Ceramic.
Explore our custom ceramic components.
Lead time depends on size, tolerance, machining details, and quantity. Please send drawings and requirements to contact us for a quotation.

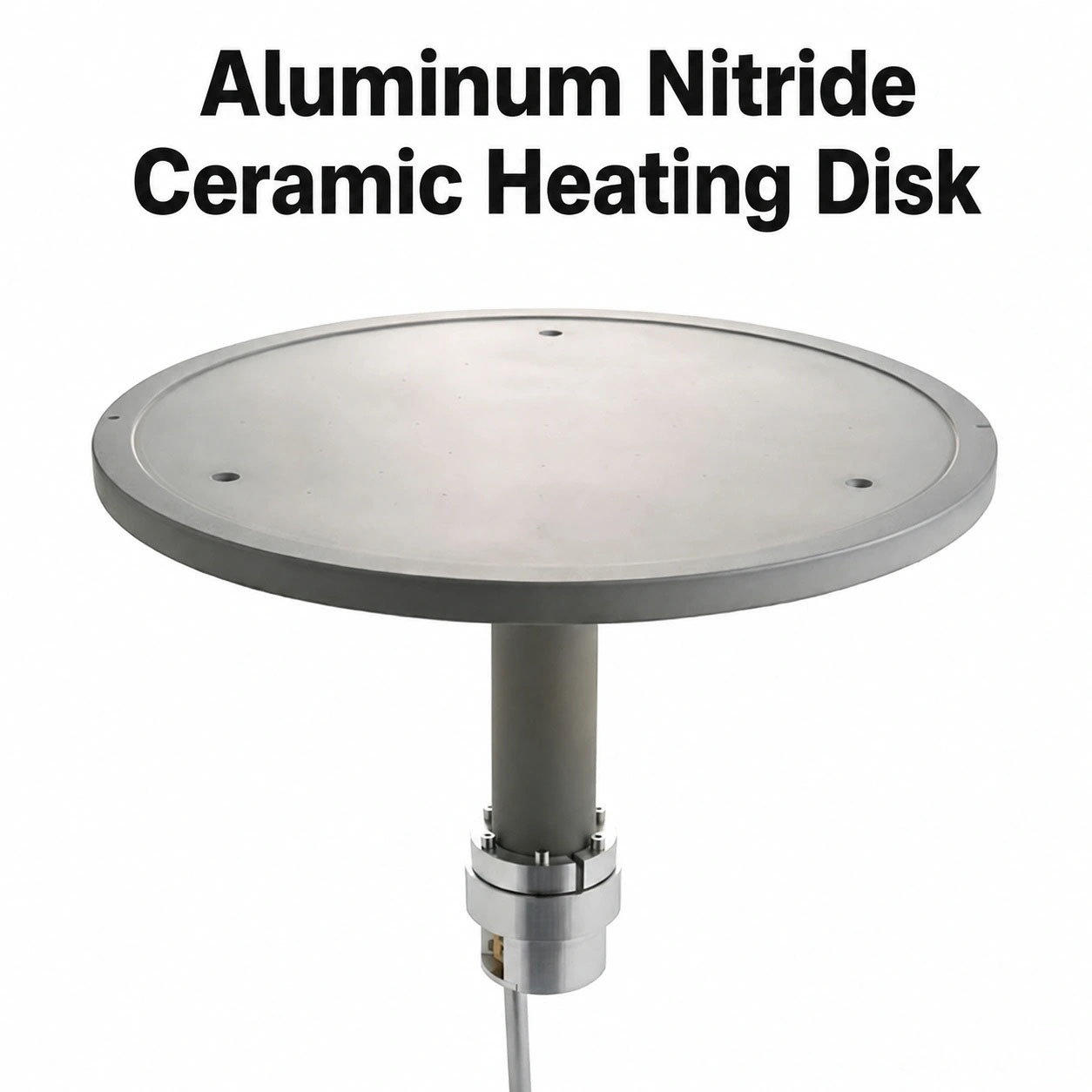

The Aluminum Nitride Ceramic Heating Disk is a disk-shaped thermal management component made from aluminum nitride (AlN) ceramic. It is designed for semiconductor equipment, vacuum heating systems, electronic packaging, and precision temperature-control assemblies. The material provides high thermal conductivity, reliable electrical insulation, and low thermal expansion, enabling fast, uniform heat transfer while maintaining dimensional and insulation stability in high-temperature and vacuum environments.
Material System
This product is made from aluminum nitride (AlN) ceramic. The material combines high thermal conductivity, reliable electrical insulation, low thermal expansion, and stable performance at elevated temperatures.
Application Scenarios
Rapid Heat Transfer
The high thermal conductivity of aluminum nitride ceramic enables heat to spread quickly across the disk surface.
Uniform Temperature Distribution
The disk-shaped structure supports more even heat spreading across the surface, helping reduce localized temperature differences when properly integrated with the heating circuit and assembly.
Reliable Electrical Insulation
The ceramic maintains electrical isolation while transferring heat, making it suitable for equipment requiring both thermal conductivity and insulation.
Dimensional Stability
Its low coefficient of thermal expansion helps the component maintain structural and dimensional stability during temperature changes.
CERAMPRO can produce AlN ceramic heating disks according to customer drawings, including custom diameter, thickness, mounting holes, grooves, chamfers, and surface finish requirements. Learn more about our custom ceramic components.
| Product Name | Aluminum Nitride Ceramic Heating Disk |
| Material | Aluminum Nitride Ceramic / AlN Ceramic |
| Shape | Disk / Plate / Ring / Custom Shape |
| Main Properties | High thermal conductivity, electrical insulation, thermal stability |
| Custom Size | Available according to customer drawings |
| Machining Options | Mounting holes, grooves, slots, chamfers, surface grinding |
| Surface Finish | As-fired, ground, polished, or customized |
| Application | Ceramic heating disk, AlN heater plate, thermal management component |
| Material | Thermal Conductivity | Electrical Insulation | Thermal Expansion | Main Advantage | Suitable Applications |
|---|---|---|---|---|---|
| Aluminum Nitride (AlN) | High | Excellent | Low | Combines efficient heat transfer with electrical insulation | Semiconductor heating, vacuum systems and precision thermal control |
| Alumina (Al₂O₃) | Moderate to low | Excellent | Moderate | Cost-effective and widely available | General insulation and standard ceramic heater components |
| Silicon Nitride (Si₃N₄) | Moderate | Excellent | Low | High mechanical strength and thermal-shock resistance | Components exposed to impact or rapid temperature changes |
| Metal | High | No | Relatively high | Fast heat transfer and easy machining | Applications that do not require electrical isolation |
Aluminum nitride is preferred when high thermal conductivity, electrical insulation, and dimensional stability are required simultaneously. Alumina is more economical, silicon nitride performs better under mechanical and thermal shock, while metal components require additional insulation.
FAQ
1. What is an Aluminum Nitride Ceramic Heating Disk?
It is a disk-shaped thermal management component made from aluminum nitride (AlN) ceramic. Depending on the design, it can serve as a heat-transfer disk, electrically insulating base, or part of an integrated ceramic heating assembly.
2. Does the heating disk include an integrated heating circuit?
The heating structure depends on the specific application design. An embedded or assembled heating circuit can be evaluated according to the required voltage, power, operating temperature, temperature uniformity, and installation method.
3. Can the AlN ceramic heating disk be used in vacuum environments?
Yes. Aluminum nitride ceramic is suitable for vacuum thermal systems, but the electrodes, bonding materials, lead wires, and mounting components must be evaluated according to the required vacuum level and operating temperature.
4. What is the maximum operating temperature?
The maximum operating temperature depends on the AlN material grade, heating structure, electrode design, bonding method, and working environment. CERAMPRO evaluates the appropriate operating range according to the application requirements.
5. Can the dimensions and machining features be customized?
Yes. Diameter, thickness, mounting holes, grooves, slots, chamfers, flatness, surface finish, and other structural features can be customized according to customer drawings.
6. How does aluminum nitride compare with alumina for heating disks?
Aluminum nitride provides higher thermal conductivity while maintaining electrical insulation and low thermal expansion. Alumina is more economical and suitable for applications with less demanding heat-transfer requirements.
7. What information is required for a quotation?
Please provide the product drawing, dimensions, tolerances, required quantity, operating temperature, voltage and power requirements, heating structure, surface finish, installation method, and application environment.
