Place of Origin:Dongguan, Guangdong, China
Material Introduction:
Custom ceramic protective sleeves can be made from alumina ceramic, zirconia ceramic, silicon carbide or silicon nitride, depending on insulation needs, wear level, temperature, corrosion exposure and component protection requirements. Alumina is commonly used for insulation and general protection, while zirconia is suitable for applications requiring higher toughness and smoother contact surfaces.
Key Features:
Designed as external protective sleeves, these ceramic components help protect sensors, probes, electrodes, rods and metal parts from wear, heat, corrosion and electrical contact. They offer stable dimensions, smooth surface finish, precision ID/OD grinding and custom sizes based on customer drawings.
Application Industries:
Suitable for sensor protection, probe assemblies, electrode insulation, electrical equipment, thermal systems, inspection fixtures, industrial automation and other equipment where metal or sensitive components need wear-resistant and insulating protection.
Lead Time:
Lead time depends on material selection, drawing complexity, tolerance requirements, surface finish and order quantity. Please contact CERAMPRO with your drawing, sample or application details for a customized quotation.

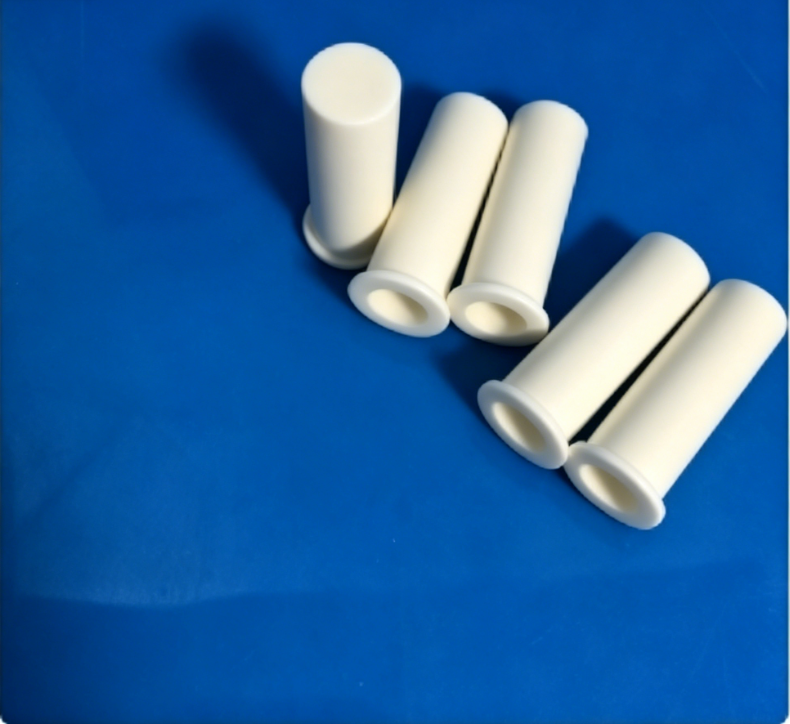

Custom ceramic protective sleeves are cylindrical ceramic covers used to protect sensors, probes, electrodes, rods, pins and metal components in demanding working environments. They are designed for parts that may be exposed to wear, heat, corrosion, friction or electrical contact during operation.
This product is positioned as a component protection sleeve. It is different from ceramic bushings, which are usually installed inside housings or holes for support and friction reduction. It is also different from ceramic guide tubes, which are mainly used to guide wires, fibers, gases or liquids. Ceramic protective sleeves are mainly used to cover, insulate and protect exposed or sensitive components.
CERAMPRO manufactures ceramic protective sleeves according to customer drawings, samples or working condition details. Inner diameter, outer diameter, length, wall thickness, chamfers, grooves and surface finish can be customized to meet different assembly and protection requirements.
Custom ceramic protective sleeves can be made from alumina ceramic, zirconia ceramic, silicon carbide or silicon nitride. The material is selected according to insulation requirements, wear level, working temperature, corrosion exposure and mechanical load.
Alumina ceramic is commonly used for electrical insulation, general wear protection and cost-effective component protection. Zirconia ceramic is suitable for applications that need higher toughness, better impact resistance or a smoother contact surface. Silicon carbide and silicon nitride can be considered for harsher environments involving strong abrasion, corrosion, thermal shock or high temperature.
Ceramic protective sleeves are suitable for sensor protection, probe assemblies, electrode insulation, metal rod protection, thermal equipment, inspection fixtures, electrical equipment and industrial automation systems.
They are often used when a component needs to be covered or isolated from direct friction, heat exposure, corrosive media or electrical contact. This page focuses on protective sleeve applications for exposed or sensitive parts, not bearing bushings, guide tubes, pump sleeves or valve sleeves.
CERAMPRO supplies custom ceramic protective sleeves for OEM equipment manufacturers and industrial users who need reliable wear-resistant, insulating or protective ceramic covers. We support material selection, drawing review, ceramic forming, sintering, precision grinding, chamfering and surface finishing.
Whether the sleeve is used to protect a sensor, isolate an electrode, cover a metal rod or improve component life in a high-wear area, our team can help recommend a suitable ceramic material and machining solution. Please contact CERAMPRO with your drawing, sample or application details for quotation support.
| Item | Available Options |
|---|---|
| Product Type | Custom Ceramic Protective Sleeves |
| Main Use | External component protection, electrical insulation, wear protection and heat protection |
| Material Options | Alumina, zirconia, silicon carbide, silicon nitride |
| Typical Structures | Straight sleeve, stepped sleeve, thin-wall sleeve, insulating sleeve, protective cover sleeve |
| Processing Methods | Forming, sintering, CNC grinding, ID/OD grinding, chamfering and polishing |
| Custom Options | Inner diameter, outer diameter, length, wall thickness, chamfer, groove and end-face design |
| Surface Finish | Fine ground or polished surface according to application needs |
| Production Basis | Customer drawing, sample or working condition details |
| Material | Main Advantages | Recommended Use |
|---|---|---|
| Alumina Ceramic | Good electrical insulation, wear resistance, high hardness and cost-effective performance | Insulation sleeves, sensor protection, electrode isolation and general component protection |
| Zirconia Ceramic | Higher toughness, smoother surface finish and better resistance to mechanical impact | Precision protective sleeves and components requiring better mechanical reliability |
| Silicon Carbide Ceramic | Excellent wear resistance, corrosion resistance and thermal stability | Abrasive, corrosive or high-temperature protection environments |
| Silicon Nitride Ceramic | Good thermal shock resistance, strength and toughness | High-temperature or mechanically demanding protective sleeve applications |
Ceramic protective sleeves are used to cover and protect sensors, probes, electrodes, rods, pins and metal components from wear, heat, corrosion and electrical contact.
Ceramic protective sleeves are mainly used as external covers for component protection. Ceramic bushings are usually installed inside holes or housings to support shafts or reduce friction.
Ceramic guide tubes are mainly used to guide wires, fibers, gases or liquids through a passage. Ceramic protective sleeves are used to cover, insulate and protect components.
Available materials include alumina, zirconia, silicon carbide and silicon nitride. The best choice depends on insulation needs, wear level, temperature, corrosion exposure and mechanical load.
Alumina ceramic is commonly used for insulation sleeves because it provides good electrical insulation, wear resistance and high-temperature stability.
Zirconia ceramic is often selected when the sleeve needs higher toughness, a smoother surface or better resistance to mechanical impact.
Yes. Inner diameter, outer diameter, length, wall thickness, chamfer, groove, end-face design and surface finish can be customized according to drawings or samples.
In many cases, yes. Ceramic sleeves are useful when metal covers wear quickly, corrode, conduct electricity or cannot remain stable under heat or friction.
A drawing is preferred. If no drawing is available, customers can provide dimensions, material requirements, quantity, working temperature, application environment and tolerance requirements.
They are used in electrical equipment, sensor systems, probe assemblies, electrode insulation, thermal equipment, inspection fixtures, industrial automation and other applications requiring wear-resistant or insulating component protection.
