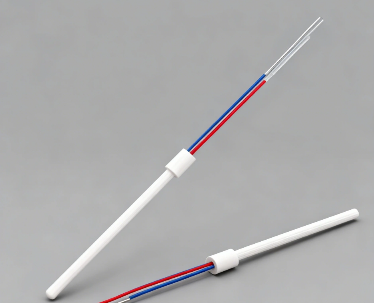

Product Name: High-Performance Ceramic Heating Core for Soldering Applications
Product Material: High-Purity Alumina Ceramic (96% $Al_2O_3$) or Silicon Nitride ($Si_3N_4$), with Co-fired Refractory Metal (Tungsten/Molybdenum) circuits
Material Characteristics: Ultra-fast thermal response (reaches 350°C in <10s), High volume resistivity (>$10^{13}$ Ω·cm), Superior dielectric strength (>15 kV/mm), High mechanical strength and vibration resistance, Excellent thermal shock resistance, Zero electromagnetic interference (EMI), Oxidation-resistant internal encapsulation
Application Fields: Precision soldering irons, Industrial soldering robots, Constant temperature desoldering stations, Plastic welding tools, Hot air rework stations, Pre-heating modules for PCB assembly, Handheld soldering pens
Application Industries: Broad Semiconductor (component rework), Aerospace (precision circuit repair), Biomedical (medical device assembly), Fluid Control (automated valve soldering), Advanced Machinery (wiring harness assembly), New Energy (BMS soldering), Petrochemical (field instrument maintenance), Electronic Engineering (SMT/PCB production)
Processing Difficulties: Achieving precise internal resistance tolerance (±5%) for accurate PID temperature control, Maintaining structural integrity under rapid thermal cycling (25°C to 500°C), Ensuring high-reliability lead wire attachment (brazing) at high temperatures, Controlling ceramic surface flatness to optimize heat transfer to the soldering tip
Processing Flow: Alumina/Silicon Nitride powder preparation → Ceramic tape casting → Internal heating circuit screen printing → Multi-layer micro-lamination → High-temperature vacuum co-firing → Precision diamond grinding → Nickel/Gold plating of terminals → Lead wire brazing → Thermal imaging uniformity test → High-voltage insulation testing → Secure packaging
Delivery Period: Standard rod/tube heating cores: 25-40 days, Customized industrial-grade/large-zone heaters: 50-75 days
This Ceramic Heating Core is the engine of modern precision soldering technology, designed to provide ultra-stable heat and instantaneous thermal recovery. By encapsulating a high-purity tungsten circuit within a dense ceramic matrix, it offers an isolated heating source that prevents electrical leakage to the sensitive soldering tip. Compared to traditional wire-wound heaters, our ceramic cores are more compact, energy-efficient, and have a lifespan three times longer, making them the preferred choice for lead-free soldering and automated industrial assembly lines.
Key Features
Instantaneous Thermal Recovery: Maintains stable tip temperature even during continuous high-load soldering.
Leakage-Free Safety: Fully encapsulated circuit ensures zero electrical leakage, protecting sensitive CMOS and IC components.
Extreme Durability: Resistant to oxidation and chemical flux erosion for extended service life.
High Energy Efficiency: Optimized internal design converts 95% of electrical energy into thermal energy.
Compact Integration: Miniature diameter allows for thinner, more ergonomic tool handles.
