Place of Origin:Guangdong, China
Product Material:
Made from 92%–96% high-purity alumina ceramic (Al₂O₃) with an internal heating circuit formed from refractory metals such as tungsten (W) or molybdenum-manganese (Mo-Mn), together with nickel or silver-plated copper lead wires. Silicon nitride (Si₃N₄) is also available as an optional ceramic substrate for specific application requirements.
Functional Features:
Fast thermal response, compact construction, reliable electrical insulation and stable heat output. Shape, dimensions, voltage, resistance and lead configuration can be customized to suit the target device.
Applications:
Suitable for hair-styling tools, compact water-heating modules, oxygen sensors, small laboratory instruments, 3D-printer hot ends and other localized heating applications. Explore more ceramic heating elements .
Global OEM Supply:Serving OEM customers in the USA, Germany, Japan, and Europe
Lead Time:
Standard rod, tube and flat elements: 20–35 days.
Custom dimensions, heating circuits or lead configurations: 40–60 days.

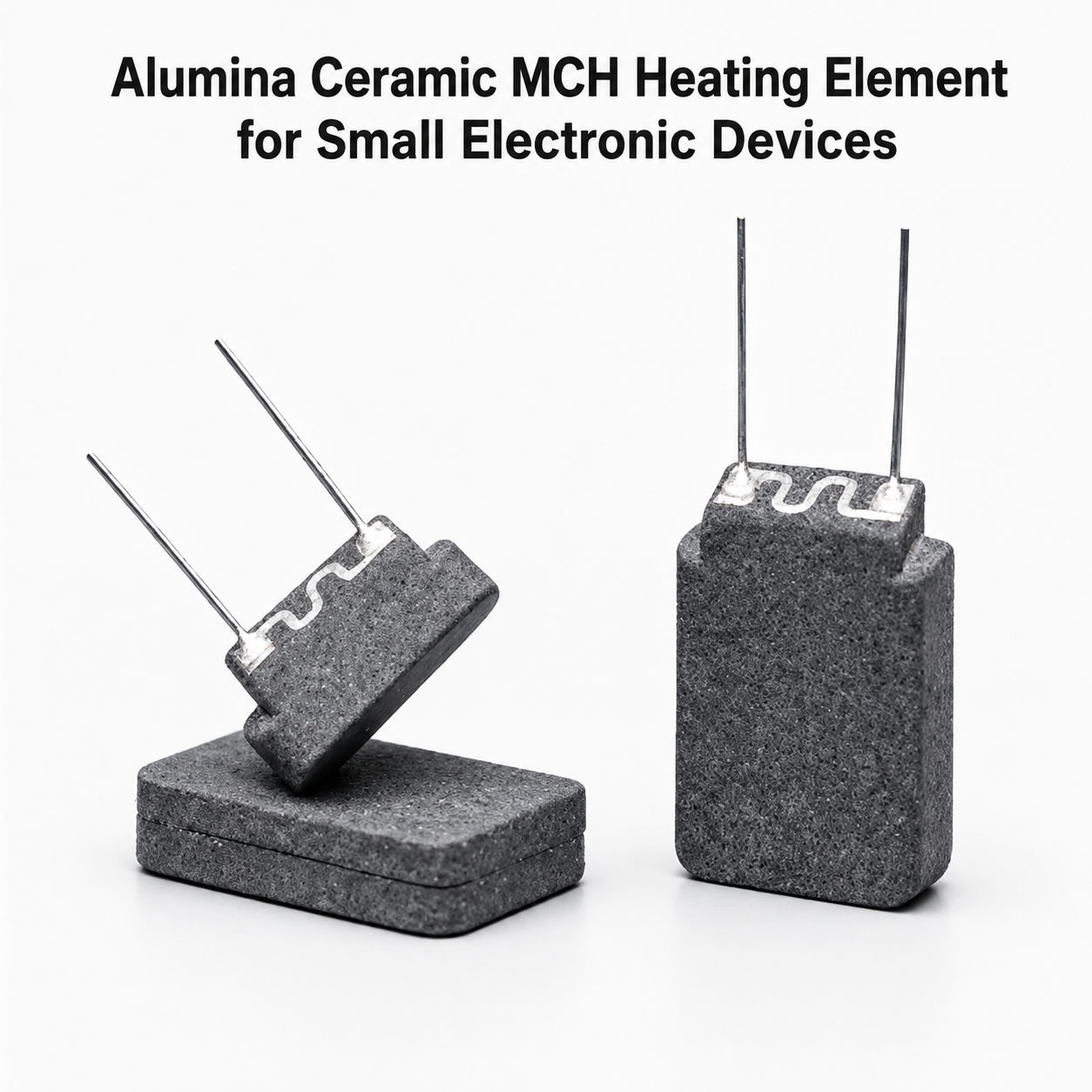

This alumina ceramic MCH heating element is designed for small electronic devices where installation space is limited. It uses a 96% alumina ceramic body with a tungsten heating circuit co-fired inside. Typical applications include hair-styling tools, compact water-heating modules, sensors and laboratory instruments. The integrated construction provides fast, localized heating without the bulky insulation and support parts often required by conventional heating-wire assemblies.
The element is made from the following materials and components:
The tungsten circuit is printed onto the ceramic green body before lamination and high-temperature co-firing. This process seals the circuit inside the alumina instead of leaving it exposed on the surface. The lead wires connect the heater to the external power supply or controller. For applications that require higher mechanical strength or better resistance to thermal shock, silicon nitride (Si₃N₄) can also be considered as an optional ceramic substrate.
This type of MCH heater is generally used where a small component needs to deliver heat to a defined area:
See our complete range of ceramic heating elements for other materials and heater configurations.
Because the tungsten circuit is built directly into the ceramic body, heat has a short path to the working surface. This is useful in devices that need to reach operating temperature quickly or run frequent heating cycles.
Heating, insulation and structural support are combined in one ceramic component. This reduces the need for separate heating wires, insulating sleeves and mounting parts inside the device.
The heating circuit is enclosed in dense ceramic and has limited contact with air. This reduces oxidation of the tungsten circuit and helps maintain consistent resistance and heat output.
The alumina body separates the internal circuit from nearby metal parts. This makes the heater suitable for compact assemblies that require reliable electrical insulation.
The position and length of the heating zone can be designed around the area that needs heat. This helps limit unnecessary temperature rise in nearby components.
The following values are for reference only. They may not all be available in the same design. Final specifications depend on the heater dimensions, working voltage, target power, control method, installation and heat dissipation.
| Parameter | Reference Specification | Notes |
|---|---|---|
| Substrate Material | 96% alumina ceramic (Al₂O₃) | Provides electrical insulation, heat transfer and structural support |
| Heating Material | Tungsten (W) | High-melting-point metal suitable for a co-fired heating circuit |
| Reference Maximum Surface Temperature | Approximately 800–1000°C | Actual limits depend on heater size, power density, control method and operating conditions |
| Reference Heat-Up Performance | Approximately 200°C within 10 seconds | Must be verified under the specified voltage, power and test conditions |
| Dielectric Strength | 2500 V AC / 50 Hz / 1 min | Reference value; final test requirements should be agreed before production |
| Reference Surface Load | Up to approximately 50 W/cm² | Depends on the effective heating area, installation and heat dissipation |
| Optional Ceramic Substrate | Silicon nitride (Si₃N₄) | Can be considered where higher strength or thermal-shock resistance is required |
| Heating Solution | Main Characteristics | Typical Applications | Points to Consider |
|---|---|---|---|
| Alumina Ceramic MCH | Embedded circuit, compact construction, fast response and electrical insulation | Small electronic devices, localized heaters and compact tools | Resistance and structure must be designed for the voltage, size and cooling conditions |
| Silicon Nitride Ceramic Heater | Higher mechanical strength and good resistance to thermal shock | Equipment exposed to frequent temperature cycling or greater mechanical loads | Material and production costs are generally higher than those of alumina |
| PTC Heater | Offers a degree of self-regulating temperature control | Equipment requiring steady heating and simplified overtemperature protection | Temperature range, response time and available dimensions may be limited |
| Metal Heating Wire | Simple structure and relatively low initial cost | Equipment with sufficient installation space and less demanding insulation requirements | Usually requires separate insulation and support, and exposed wire is more likely to oxidize |
No. It is an internal heating component. The housing, power supply, controller, temperature sensor and other parts of the finished device are normally not included.
Please provide the working voltage, target power or cold resistance, operating temperature, required heat-up time, dimensions, heating-zone location, lead arrangement, installation method and estimated order quantity. The resistance circuit must be designed for the specified voltage.
Yes. A 96% alumina substrate is the standard choice for this product. Other alumina grades or silicon nitride can be evaluated if the application requires different insulation, strength or thermal-shock performance.
No. This is a reference surface-temperature range, not a continuous rating for every design. The allowable operating temperature depends on the heater size, power density, installation, heat dissipation and required service life.
An independent sensing circuit or an external temperature sensor can be evaluated. The controller type, target temperature range, sensor specification and lead arrangement should be confirmed before development.
Yes. A sample and drawing can be used to review the shape, dimensions, leads and mounting details. The voltage, resistance, power and operating temperature must still be confirmed. Prototypes can then be tested for fit, insulation and heating performance before production.
The main factors are operating temperature, power density, heating-cycle frequency, heat dissipation, mounting stress and temperature control. Staying within the designed operating range and avoiding prolonged dry heating, severe thermal shock and mechanical pressure on the ceramic will help extend service life.
