Product Material: Yttria-stabilized Zirconia ($Y-PSZ/Y-TZP$), Optional: Magnesia-stabilized Zirconia ($Mg-PSZ$) for high-temperature stability, Ceramic-to-Metal bonded assemblies
Material Characteristics:High fracture toughness, mechanical strength, hardness, wear resistance, corrosion resistance, and dimensional stability. Its thermal expansion behavior supports integration with selected metal structures, while precision polishing provides a smooth, low-friction working surface.
Application Fields: Precision filling equipment, High-pressure homogenizers, Lithium battery slurry pumps, Medical dosing pumps, Chemical metering systems, High-end ceramic valves, Aerospace fuel control systems
Application Industries: Biomedical (Pharmaceutical filling), Advanced Machinery (Heavy-duty precision equipment), New Energy (Battery manufacturing), Fluid Control (Micro-fluidics), Electronic Engineering (Chemical delivery), Aerospace (Actuator components), Petrochemical (Corrosive media handling), Broad Semiconductor (CMP slurry pumping)
Processing Difficulties: Achieving sub-micron dimensional tolerances (±0.001mm), Mastering the precision polishing of Zirconia to achieve a defect-free mirror surface, Managing the phase transformation toughening during high-speed grinding, Controlling the concentricity of composite ceramic-metal designs
Processing Flow: Nano-grade Zirconia powder preparation → Cold Isostatic Pressing (CIP) → High-temperature sintering (1500°C+) → Precision diamond cylindrical grinding → Step-by-step mirror polishing → Ultrasonic flaw detection → CMM 3D dimensional inspection → Dynamic balance testing (if required) → Secure packaging
Delivery Period: Standard specifications: 25-35 days,

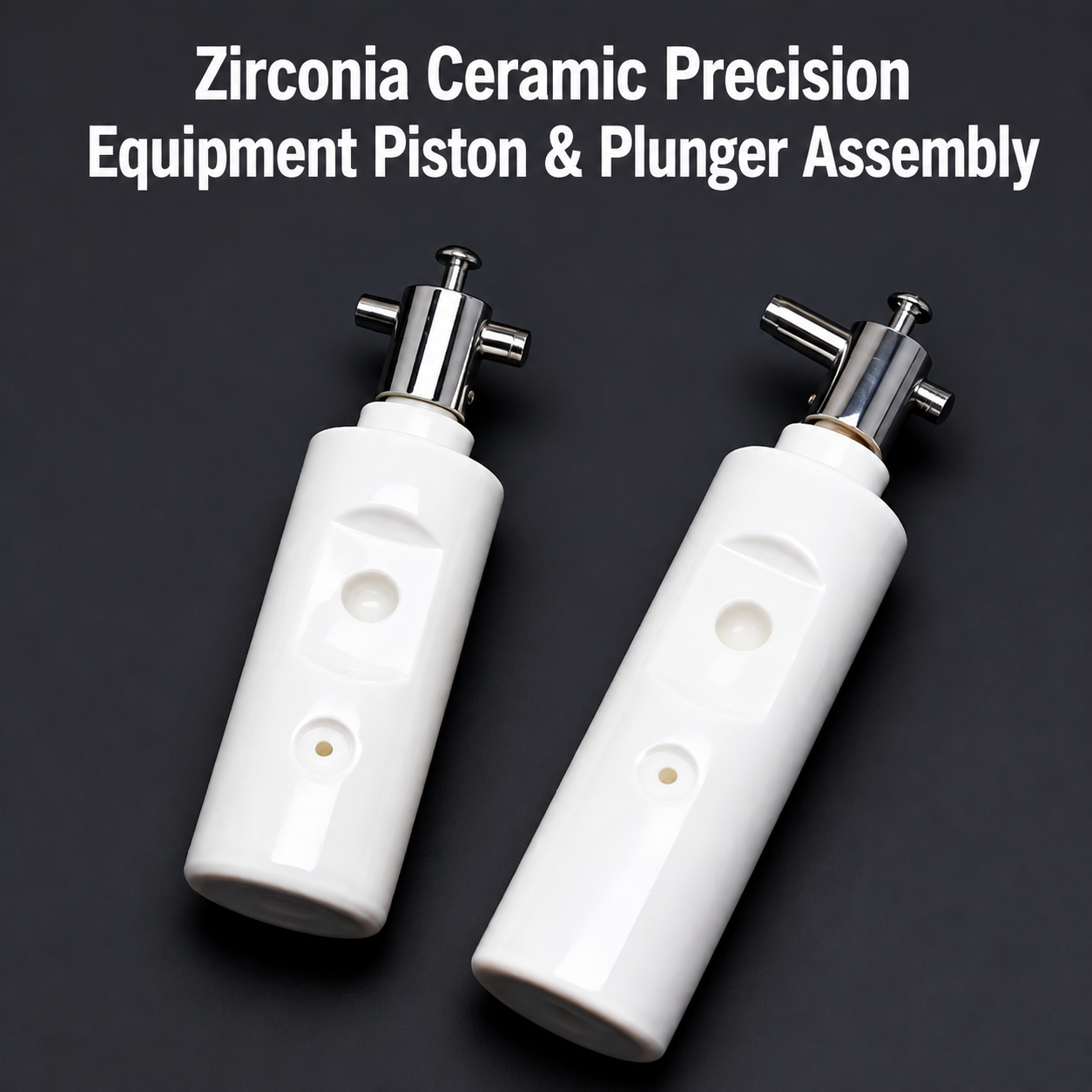

The Zirconia Ceramic Precision Equipment Piston & Plunger Assembly is manufactured from high-toughness Y-TZP zirconia ceramic . It is used in metering, dosing, filling and high-pressure pump systems, helping reduce the wear, corrosion and fluid contamination associated with conventional metal components. It is suitable for precision fluid equipment requiring reliable delivery and stable operation.
The standard material is yttria-stabilized zirconia (Y-TZP). Mg-PSZ can also be evaluated for specific temperature, pressure or mechanical-load conditions. The final material grade is selected according to the working medium and operating environment.
Used in metering pumps, dosing pumps, filling equipment, battery electrolyte injection systems, high-pressure pumps and other precision fluid-handling equipment. View more ceramic pump components .
Available as individual pistons or plungers, matched ceramic sets, ceramic-to-metal components, or complete pump assemblies. Custom steps, holes, grooves, threads and sealing features can be manufactured from customer drawings, with precision grinding, polishing and dimensional inspection available.
The following values are typical reference properties for Y-TZP zirconia. Final values depend on the selected material grade and testing method.
| Parameter | Typical Indicator | Functional Significance |
|---|---|---|
| Material | Y-TZP Zirconia | High-toughness precision ceramic |
| Fracture Toughness | 8–10 MPa·m1/2 | Helps resist chipping and cracking |
| Flexural Strength | 900–1,200 MPa | Supports mechanical and bending loads |
| Vickers Hardness | 12–13 GPa | Protects functional surfaces against wear |
| Density | Approx. 6.05 g/cm³ | Dense, low-porosity ceramic structure |
| Thermal Expansion | Approx. 10.5 × 10−6/K | Supports selected ceramic-to-metal designs |
| Property | Y-TZP Zirconia | Alumina | Stainless Steel |
|---|---|---|---|
| Fracture Toughness | High for a ceramic | Moderate | High |
| Wear Resistance | Excellent | Excellent | Moderate |
| Corrosion Resistance | Excellent in many fluids | Excellent in many fluids | Depends on alloy and medium |
| Resistance to Chipping | Better than alumina | Moderate | High |
| Metallic Contamination | None from ceramic | None from ceramic | Possible under wear or corrosion |
| Recommended Use | High-toughness precision plungers | Cost-sensitive wear components | General mechanical components |
Choose Y-TZP zirconia when toughness, wear resistance and polished surface quality are priorities. Alumina is suitable for cost-sensitive wear applications, while stainless steel is generally used in less demanding mechanical systems.
Yes. We supply individual ceramic pistons or plungers, matched ceramic components, ceramic-to-metal parts and complete pump assemblies.
Yes. We accept 2D drawings, 3D models or physical samples and evaluate manufacturing based on dimensions, tolerances, working medium and quantity.
Yes. Mating components can be processed and inspected together according to the required roundness, concentricity and assembly clearance.
Ra 0.05 μm may be available for suitable external surfaces and component geometries after technical evaluation.
Zirconia is suitable for many pharmaceutical liquids, electrolytes and industrial process fluids. Compatibility depends on composition, concentration and operating temperature.
Zirconia is recommended when higher fracture toughness, resistance to chipping and reliability under cyclic loading are required.
CERAMPRO manufactures custom zirconia ceramic components in Guangdong, China, and supplies OEM customers in the United States, Europe, Japan and other international markets with drawing-based production, quality inspection and export-ready packaging.
