Place of Origin: Guangdong, China
Material Introduction: Made from hot-pressed or gas-pressure-sintered silicon nitride ceramic (Si3N4) with an embedded tungsten (W) heating circuit. The material provides good mechanical strength, electrical insulation and stability during repeated heating and cooling.
Functional Features: Fast heating response, good thermal shock resistance, reliable electrical insulation and stable mechanical performance. Dimensions, operating voltage, resistance, heating zones and terminal structures can be customized for the customer’s equipment.
Application Industries: Suitable for industrial heating systems, automation equipment, semiconductor processing and thermal testing, non-ferrous metal processing, injection molding equipment, vacuum evaporation systems, chemical processing equipment, precision instruments and custom industrial heating modules. View more ceramic heating elements.
Global OEM Supply: Serving OEM customers in the USA, Germany, Japan, and Europe.
Lead Time: Based on specifications, quantity, and inspection requirements.

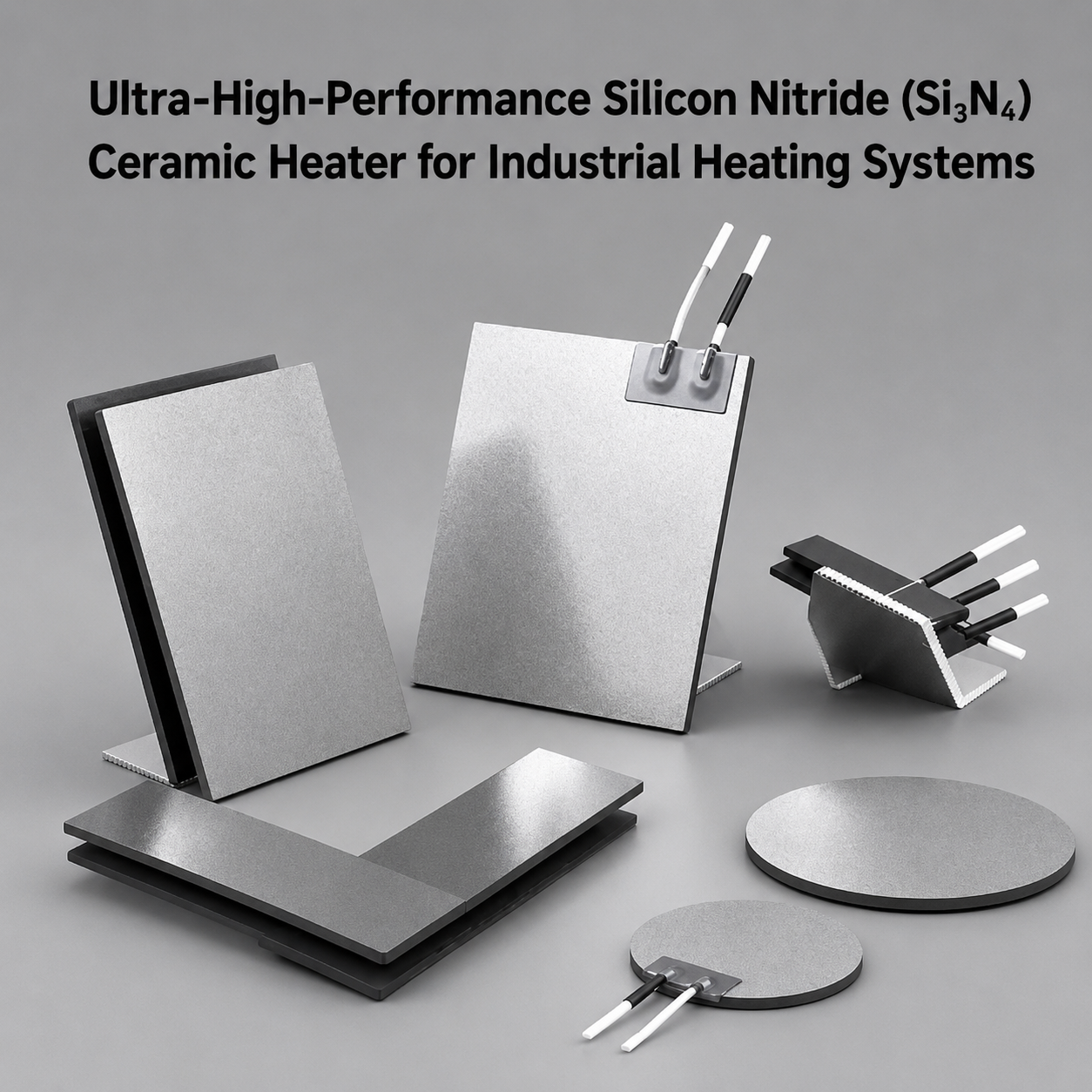

This high-performance silicon nitride ceramic heater combines a Si₃N₄ ceramic body with an embedded tungsten resistance heating circuit. It is designed for rapid heating, localized high-temperature control and frequent thermal cycling in industrial equipment. The co-fired ceramic structure provides good thermal-shock resistance and electrical insulation, helping reduce the risk of cracking or performance degradation during rapid heating and cooling.
The heater body is manufactured from hot-pressed or gas-pressure-sintered silicon nitride ceramic (Si₃N₄) . The material provides good fracture toughness, mechanical strength, electrical insulation and resistance to the thermal stress generated during rapid heating and cooling.
A tungsten (W) resistance heating circuit is embedded inside the ceramic through a controlled co-firing process. This creates an integrated structure consisting of the ceramic body, heating circuit and terminal connection areas. When energized, the internal tungsten circuit generates heat, which is transferred through the ceramic surface to the required working area.
This Si₃N₄ ceramic heater is suitable for industrial equipment that requires fast start-up, localized heating, compact installation or reliable operation during repeated thermal cycles.
Explore more ceramic heating elements for different materials, shapes and industrial heating requirements.
The embedded tungsten circuit shortens the heat-transfer path for fast start-up and localized heating.
Si₃N₄ provides good thermal-shock resistance during frequent heating and cooling cycles.
Combines electrical insulation, mechanical strength and vibration resistance for industrial equipment.
Delivers concentrated heat within limited installation space for localized high-temperature applications.
The following values are reference specifications for this silicon nitride ceramic heating element. Final performance should be confirmed according to heater dimensions, operating conditions, installation method and validation results.
| Parameter | Technical Indicator | Remarks |
|---|---|---|
| Base Material | Silicon Nitride (Si₃N₄) | High-toughness structural ceramic |
| Heating Element | Tungsten (W) | Encapsulated co-fired resistance heating circuit |
| Maximum Operating Temperature | 1000–1200°C | Continuous operation in air or inert gas |
| Thermal-Shock Resistance | ΔT ≥ 800°C | Water-quench testing under specified test conditions |
| Heating Speed | Up to 200°C/s | Rapid thermal response |
| Thermal Conductivity | 20–30 W/(m·K) | Supports rapid and uniform heat transfer |
| Insulation Strength | ≥5000 V for 1 minute | High-voltage insulation performance |
| Flexural Strength | 600–900 MPa | Good mechanical durability |
| Surface Load | Up to 50 W/cm² | High power density |
| Service Life | >10,000 hours | Depends on operating temperature and conditions |
Note: Maximum temperature, heating speed, thermal-shock resistance, surface load and service life depend on the final heater structure and operating conditions. These values should be verified using the approved product design.
| Comparison Item | Silicon Nitride (Si₃N₄) | Alumina (Al₂O₃) | Aluminum Nitride (AlN) | Metallic Heater |
|---|---|---|---|---|
| Thermal-Shock Resistance | Excellent | Moderate | Good, but design-sensitive | Good |
| Fracture Toughness | High for a technical ceramic | Lower | Moderate | High ductility |
| Thermal Conductivity | Moderate | Low to moderate | Very high | Depends on the metal alloy |
| Electrical Insulation | Excellent | Excellent | Excellent | Usually requires separate insulation |
| Mechanical-Shock Resistance | Better than many conventional ceramics | More brittle | More brittle than Si₃N₄ | Good |
| Heating-Circuit Protection | Embedded within the ceramic | Can be embedded within the ceramic | Can be embedded within the ceramic | Exposed elements may oxidize |
| Suitable Requirements | Rapid thermal cycling and mechanically demanding systems | General and cost-sensitive ceramic heating | Rapid heat spreading and temperature uniformity | Simple and replaceable heating structures |
A silicon nitride ceramic heater is generally selected when thermal cycling, mechanical reliability and compact power density are the main concerns. Aluminum nitride is more suitable when high thermal conductivity and temperature uniformity are the priority, while alumina is commonly used for standard ceramic heating applications with greater cost sensitivity.
A silicon nitride ceramic heater consists of an electrically insulating Si₃N₄ ceramic body and an embedded tungsten resistance heating circuit. When energized, the internal circuit converts electrical energy into heat, which is transferred through the ceramic surface to the working area.
Silicon nitride has higher fracture toughness and better thermal-shock resistance, making it more suitable for rapid temperature changes, mechanical vibration and frequent equipment start-stop cycles. Alumina remains suitable for many standard heating applications but is generally more sensitive to severe thermal cycling.
Some validated designs can approach an operating temperature of 1200°C or a heating speed of up to 200°C/s. However, these values do not apply to every heater size. Actual performance depends on thickness, input power, surface load, operating atmosphere, heat dissipation and equipment thermal mass.
Silicon nitride can be used in certain non-ferrous metal processing environments. Direct immersion must be evaluated according to the metal type, operating temperature, immersion depth, atmosphere and terminal-sealing structure.
Product shape, dimensions, operating voltage, resistance, power, heated zones, non-heated areas and terminal structure can be evaluated according to the equipment requirements. For a quotation, please provide a 2D or 3D drawing, target temperature, operating atmosphere, mounting method and estimated order quantity.
Yes. CERAMPRO supplies custom silicon nitride ceramic heaters to OEM customers in the USA, Germany, Japan and Europe, supporting drawing evaluation, prototype development and volume production. Customers can provide product drawings, operating voltage, target temperature, temperature-control method and inspection requirements for technical evaluation.
Standard inspection can include dimensional measurement, room-temperature resistance, insulation strength, appearance and terminal condition. Thermal-cycle, heating-speed and service-life testing can be performed according to the approved technical specification, application conditions and agreed inspection requirements.
Send CERAMPRO your product drawing, operating voltage, required power, target temperature, heated area, mounting method and operating conditions. Our engineering team will evaluate the ceramic structure, tungsten resistance circuit and terminal configuration for prototype development and volume production.
